UNI-Collect Package

Measure and record anything on site to the centimetre: cables and pipes in the trench, manholes, kerbs and road edges, trees and green. Set out points and lines straight from a drawing, so you know exactly where things go. Check heights, depths and slopes, work out lengths, areas and volumes, and hand the office or your client a finished file the same day. No surveyor needed.

No. It is built for people without a surveying background. If you can use a smartphone you can measure and set out with it, and our support walks you through the first setup on the phone.

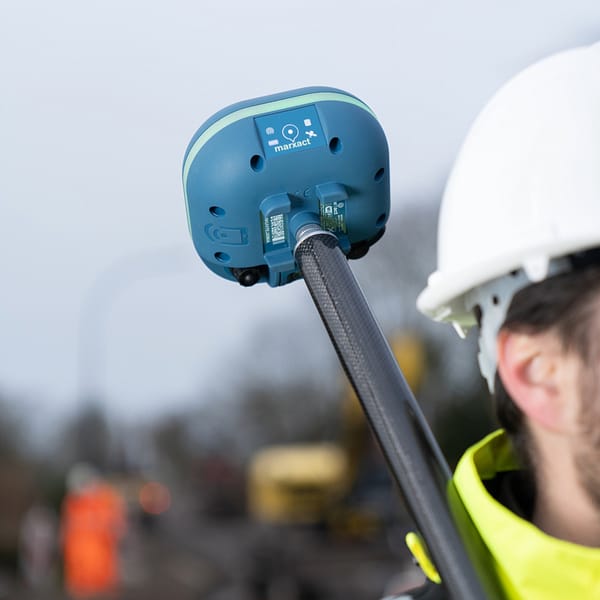

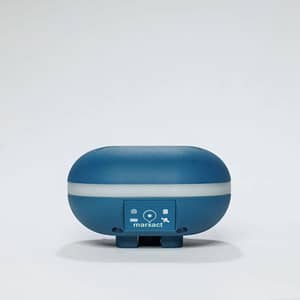

In the open field the UNI-GR2 reaches 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical with an RTK fix, and 3 mm + 1 ppm in static mode. Close to buildings, trees or other obstructions, where the sky view is limited, expect closer to 2 cm in real conditions.

You choose the coordinate reference system per project, with the transformation grids stored on the tablet. RD and NAP in the Netherlands, OSGB36 in the UK, Lambert in Belgium, the national grid and height system in Germany, and any other system you need.

The platform is set up for the standards clients ask for, including NLCS and NLCS++ for cables and pipes, CROW 500 and the DSP exchange in the Netherlands, and open protocols like NMEA-0183 for other receivers. It supports the way this work is delivered, from trial trenches (proefsleuven) to digital construction supervision (digitale Baubegleitung). And if there is a standard you need that we do not support yet, we are always open to it and think along with you.

One year of UNI-RTK Premium is included, our correction network with more than 2,000 base stations in over 30 countries. You can also use your own NTRIP service such as SAPOS in Germany or FLEPOS in Flanders, which are free. Bring your own network and you save the € 1.000 a year that UNI-RTK Premium costs, and we adjust the package price.

Yes. Your projects and layers sit on the tablet, so you keep measuring offline and everything syncs to UNI-Cloud once you have coverage again. A live RTK fix does need a correction signal over 4G.

Yes. From UNI-Cloud Professional the KLIC cable and pipe map loads as a layer over your project, in the field and in the office. That plan is part of the package.

Import CSV, TXT, DXF, DWG, LandXML, GeoJSON, KML and ESRI Shapefile. Export DWG, DXF, LandXML, CSV, TXT and GeoJSON, and from Q3 2026 also PDF reports. You can also share a project and its map through a view link or QR code, so a client opens the result without any software.

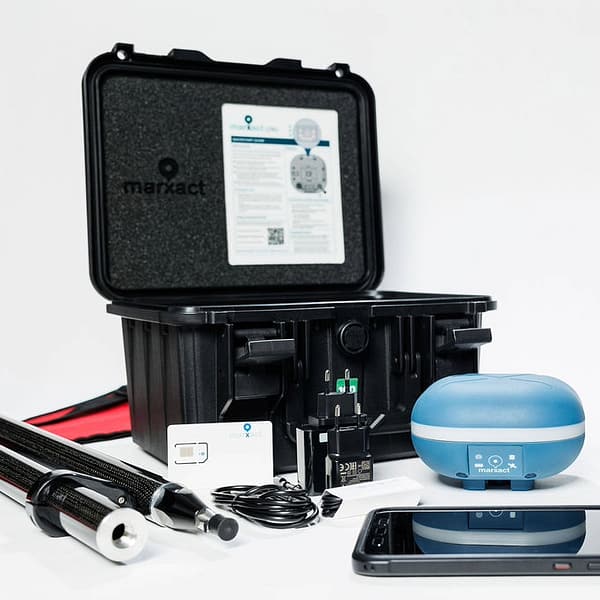

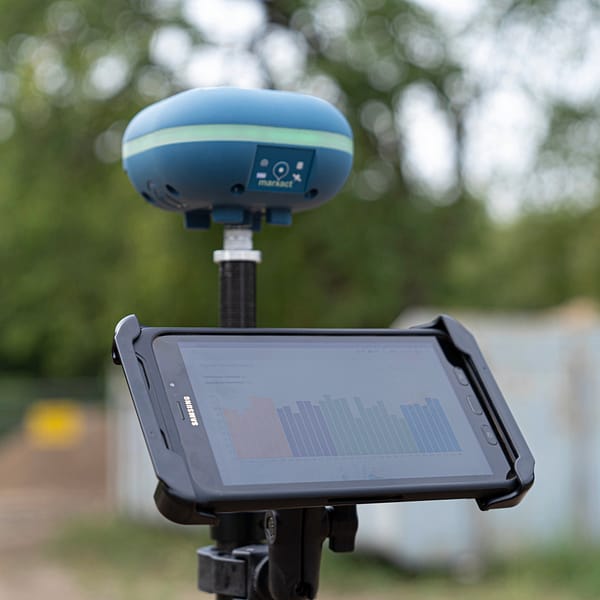

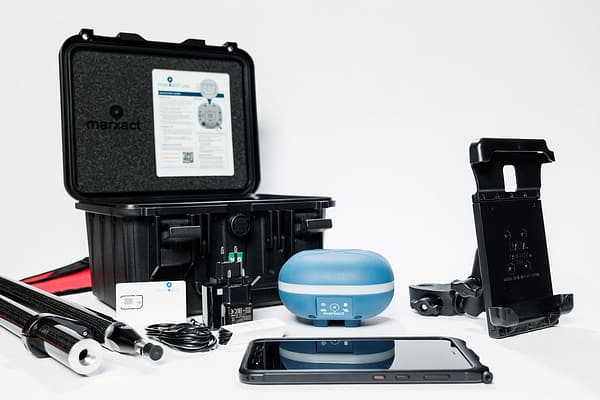

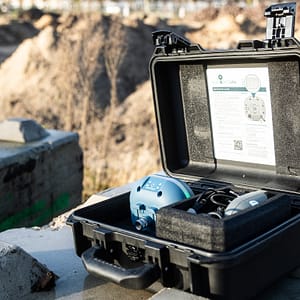

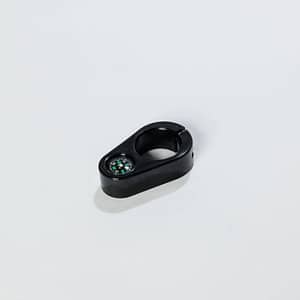

One case with the UNI-GR2 receiver, a Samsung Galaxy Active Tab 5.0 rugged tablet, a 200 cm carbon pole with RAM mount, the UNI-Collect app, one year of UNI-Cloud Professional and one year of UNI-RTK Premium. It is € 5.645 the first year, then € 1.750 a year for the two subscriptions.

The recurring € 1.750 covers UNI-Cloud Professional and UNI-RTK Premium. The corrections are what give you the centimetre fix, so for RTK work you need a correction service. Run your own NTRIP network instead and you save the € 1.000 for UNI-RTK Premium.

Yes. Bring your own tablet and we leave it out of the package and adjust the price. The UNI-Collect app is included either way.

For recurring measuring and setting-out work, yes, from the first year. A surveying service costs around € 500 a day. With the Survey Package you sit at about € 9,92 per working day over five years, or € 0,03 per metre surveyed, and you measure whenever you need to.

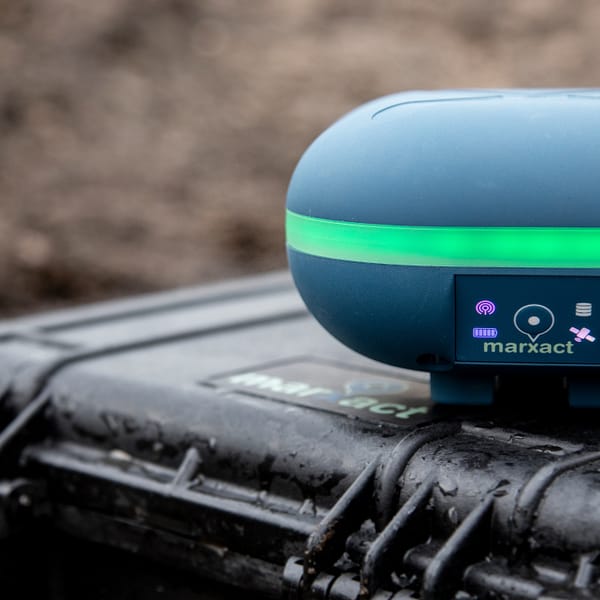

Yes. The UNI-GR2 is made for outdoor work in dust, rain and cold, and keeps working through a full day on one charge. It is built to take the knocks of a normal working day on site.

In the Netherlands. We develop the hardware and the software in-house in Hilversum, and the UNI-GR2 is produced in Rotterdam. You get European build quality and one company behind the whole chain.

Our own team in Hilversum answers the phone Monday to Friday, 09:00 to 17:00 CET, on local numbers in the Netherlands, Germany and the UK. From the Professional plan up they take over your device remotely and fix most things on the spot.

Yes. We're happy to show you the system first with a no-obligation demo on location: at your job site, at your company, or at our office. When we deliver, we walk through it together so you can start right away. On-site training is available if you want it, but it's not a must: if you can use a smartphone, you can work with this. Think of it as extra certainty that you get everything out of it. And you can always call us.
