The most universal RTK GNSS Receiver

You choose how you work

The UNI-GR2 is everything you need in a GNSS receiver. With its universal character, it is suitable for any job. Whether you are a pro or not (yet), everyone can work with the UNI.

You choose how you work, the UNI adapts to it.

Rover

Set-up the UNI-GR2 as an RTK rover, receive corrections over NTRIP or a local UNI base and start surveying or do stake-outs.

Gets a centimetre accurate FIX fast. TIlt-sensor is standard included on the new UNI-GR2 for possbile surveying in more challenging environments.

Base Station

As a base station, the UNI-GR2 provides RTK corrections to your local UNI rover or any other device over NTRIP.

Start your own correction service.

€ 3295,-

Get a brochure and the full specifications

Receive a brochure in your mailbox

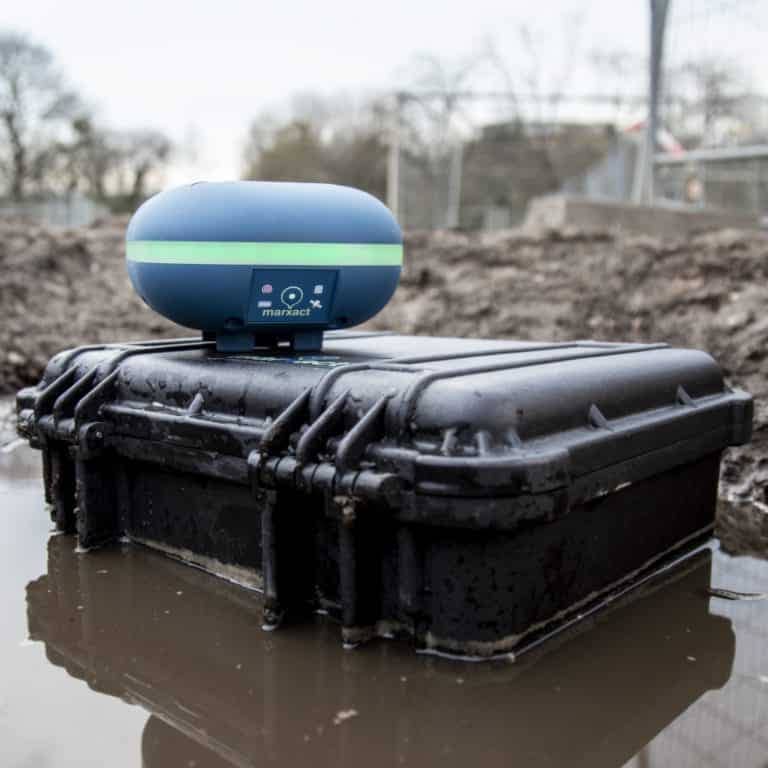

The UNI-GR2 is designed to work in the most rugged environments

Ready for any weather type

Being IP67 waterproof, ready for temperatures ranging from -20 to +55 degrees Celsius and pole-drop resistant, you can take the UNI to work in the most challenging environments.

See what you are doing

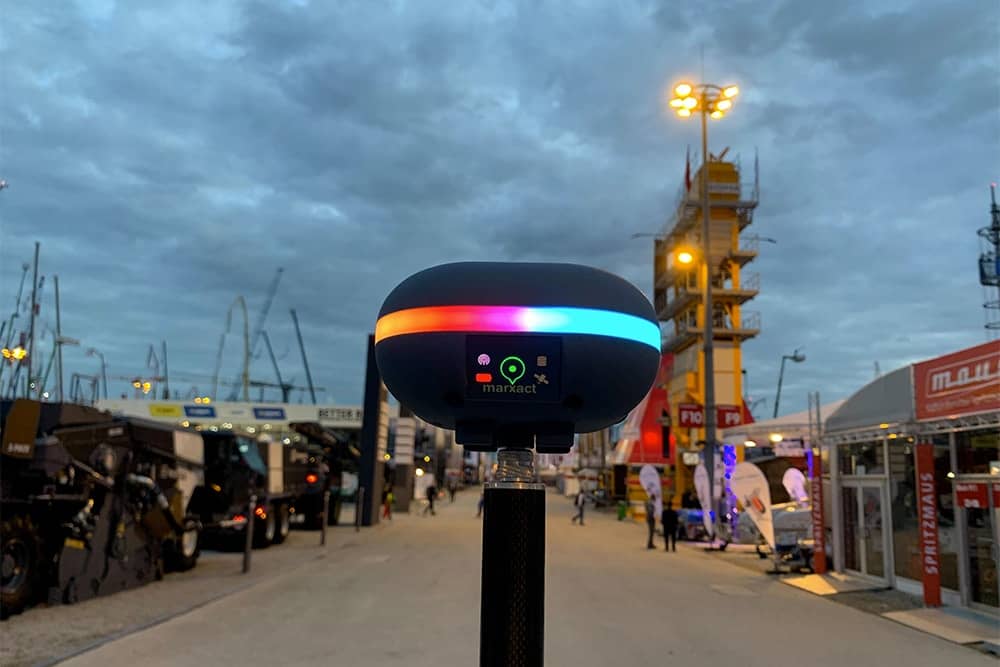

Set the advanced LED ring to see if the pole is levelled, to show your fix status, shine light on your work or warn others in the dark that you are working there with the safety mode.

Gets you going all day

With a built-in 10.400 mAh battery, this 800 grams light-weight is designed to work up to 12 hours. You can easily complete a full working day without exhausting the UNI's energy. Or your own energy.

When it comes to performance, the UNI is a real powerhouse

Signals

Channels: 1408
GPS: L1C/A/L1C/L2P (Y)/L2C/L5
Glonass: G1/G2/G3
Galileo: E1/E5a/E5b/E6
Beidou: B1/B2/B3
QZSS: L1C/A/L1C/L2C/L5
L-Band Corrections Supported
SBAS: WAAS - EGNOS - GAGAN - MSAS - SDCM

Performance

IMU: 9 Degrees of Freedom
Tilt-sensor included
Initialisation time: <55s
Time to first FIX: <45s (cold)
Time to first FIX: <10s (hot)
Reacquisition: <5s
Initialisation reliability: >99.9%
Position update rate: 20Hz

Accuracy

Standalone H / V 1.5m / 3m
DGPS Horizontal 400mm
DGPS Vertical 800mm
Static Horizontal 3mm + 1ppm
Static Vertical 6mm + 1ppm
RTK Horizontal 8mm + 1ppm
RTK Vertical 15mm + 1ppm

Left with any other questions? Reach out to us!

It comes down to the fact that if you use the UNI-GR2 in normal sky conditions with a correction provider such as UNI-RTK Premium, you will get a centimetre accurate position FIX from all possible satellites within 2 minutes after turning on the UNI.

The UNI-GR2 always comes completely unlocked. Meaning you can use all satellite signals and hardware specs without extra charges.

Yes, as long as the receiving app supports an external positioning NMEA input over Bluetooth, Serial or USB, the UNI-GR2 can work with it out of the box.

Even when it doesn’t work out of the box, you can completely customise the NMEA string to make sure the UNI sends the right message to the receiving end. This means you can also connect it to your machinery.

If you have influence on the development of the app of your liking, you can also make it work with the UNI-Cloud API getting you even more options.

All the above not an option and is it an Android app? Overwrite the internal location of your Android device and it still works!

With the UNI-GR2 and UNI-Connect, any device that has WiFi and a browser can function as a controller.

Meaning your smartphone, tablet, laptop, computer or most other devices.

Want to buy a complete set anyway? Check out UNI-Complete.

Yes, you can.

Since the UNI-GR2 comes with free UNI-Connect surveying software working on any device with a browser and WiFi, you can work with just the UNI-GR2.

However this means that you can survey with standalone quality of around one meter accuracy.

In case you want centimetre accuracy you need to provide the UNI-GR2 with RTK correction data or post-process the data afterwards.

Sounds complicated? Just get UNI-Complete and you have all you need to start surveying with CM accuracy out of the box.

Yes, the UNI-GR2 support tilts. That means you can use the tilt-functionality in combination with the UNI-Collect survey software. In this way you can use the UNI-GR2 in more challenging environments, and keeping the UNI levelled is not a must anymore.
