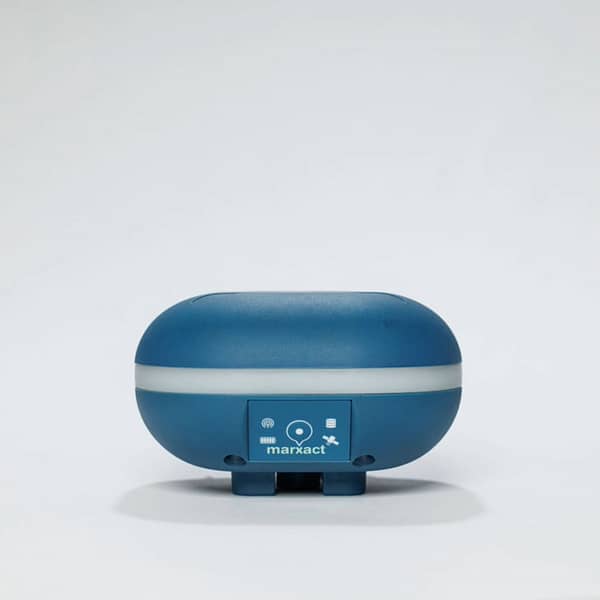

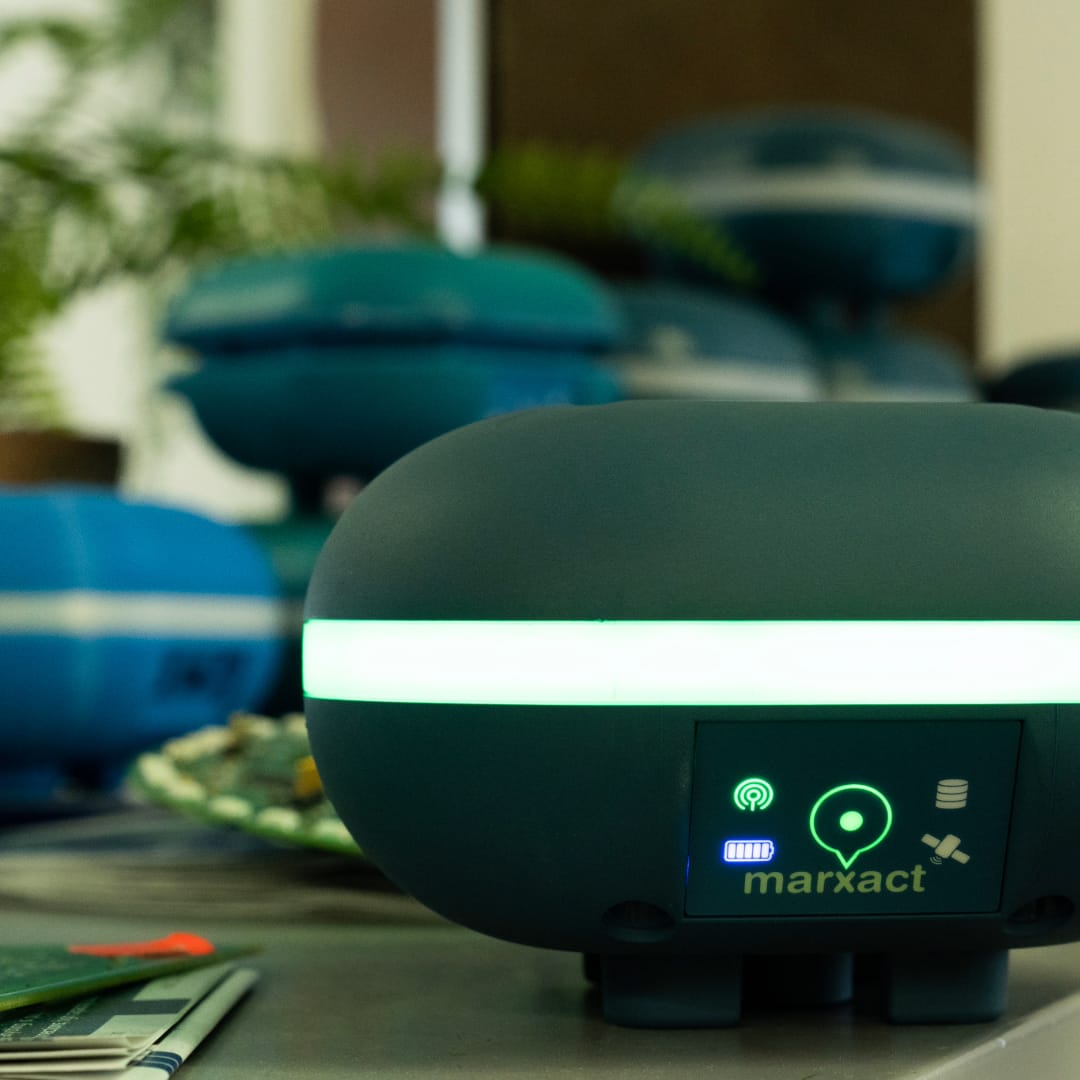

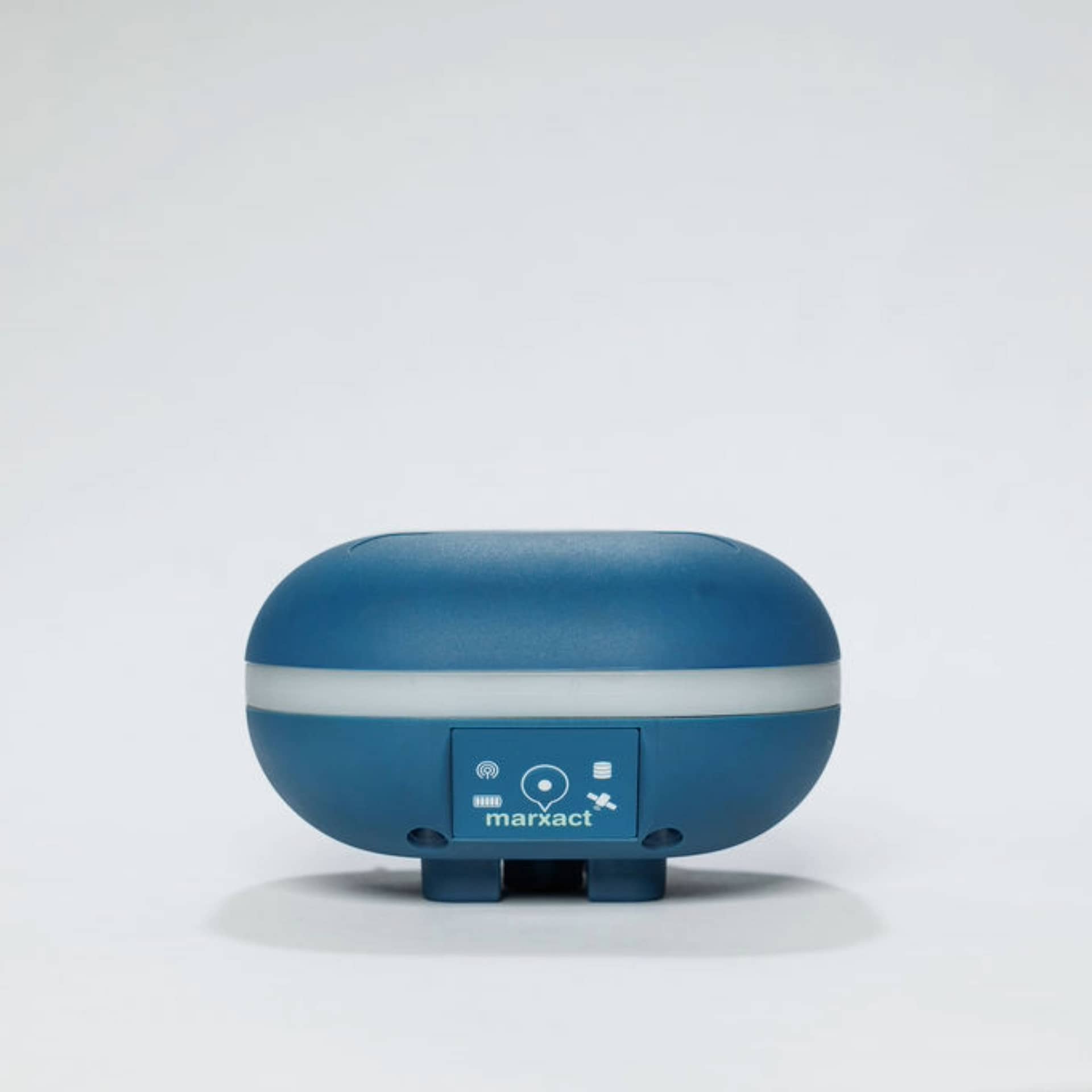

UNI-GR2 RTK GNSS Receiver

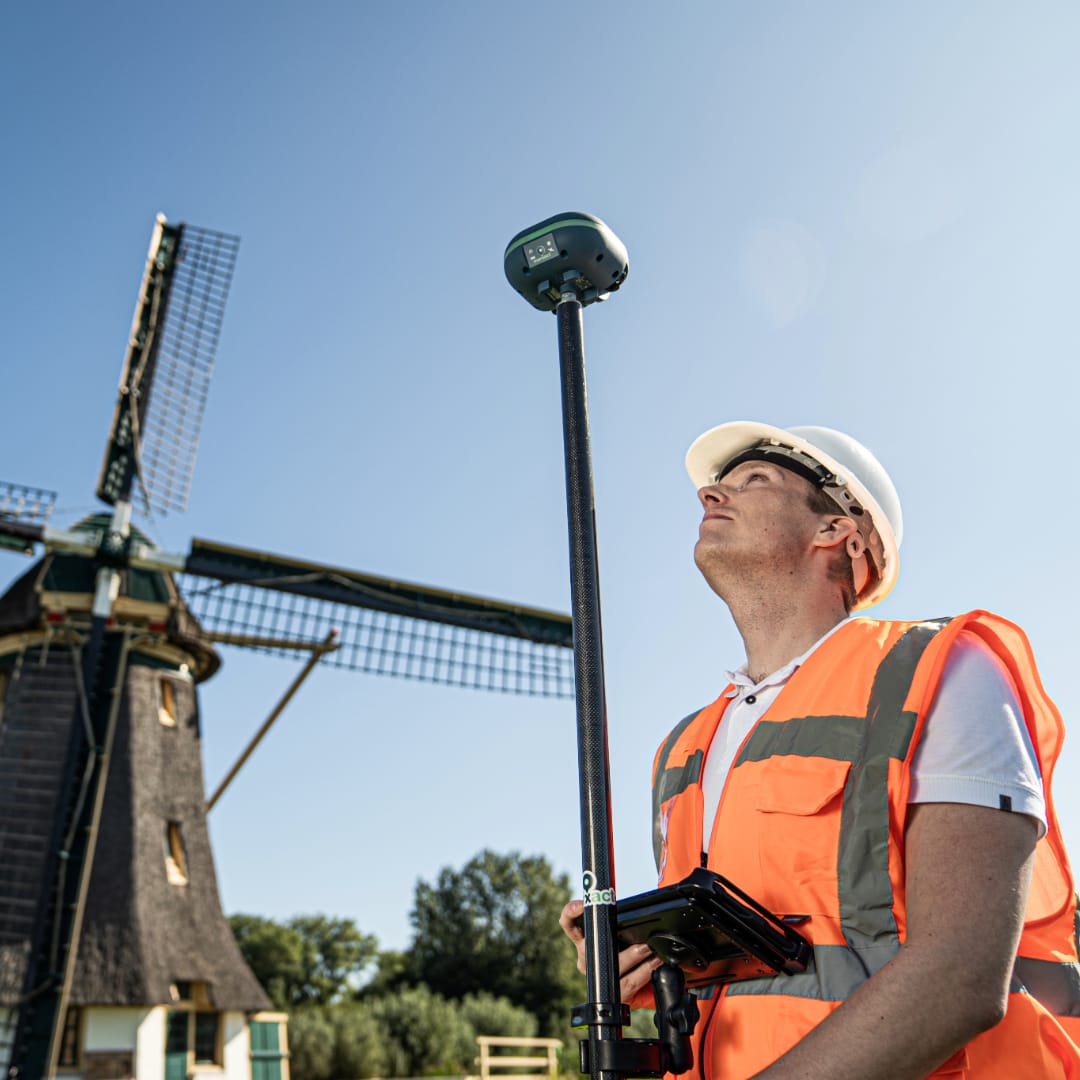

It is the receiver that gives you a centimetre-accurate position in the field, on a pole with UNI-Collect for surveying and setting out, or on an excavator for machine control. Measure cables and pipes, set out from a drawing, check levels, and record as-builts.

In the open field 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical with an RTK fix, and 3 mm + 1 ppm horizontal in static mode. Close to buildings or trees, where the sky view is limited, expect closer to 2 cm in real conditions.

1,408 channels across five systems: GPS, GLONASS, Galileo, BeiDou and QZSS. It gets a first fix in seconds and updates the position many times a second, which keeps it reliable on a busy site.

No. The built-in tilt sensor lets you survey with the pole tilted up to 45 degrees, so you reach points against a wall or in a trench without levelling.

Any NTRIP service. Use our UNI-RTK Premium network, or your own service such as SAPOS or FLEPOS, which are free and save you the € 1.000 a year that UNI-RTK Premium costs. The receiver can also act as a base station for other rovers.

Yes. It pairs with UNI-Collect, and with third-party survey apps that accept a Bluetooth NMEA-0183 receiver. It also outputs corrections as a base for non-marXact rovers. Open on both sides.

Over WiFi, Bluetooth or cable, with a built-in 4G connection and WiFi hotspot, and it charges over USB-C. One battery lasts a full working day.

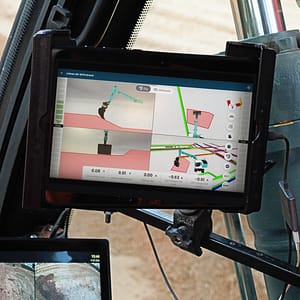

Yes. It outputs over CAN bus for machine guidance and is used in the UNI-Machine setup on excavators.

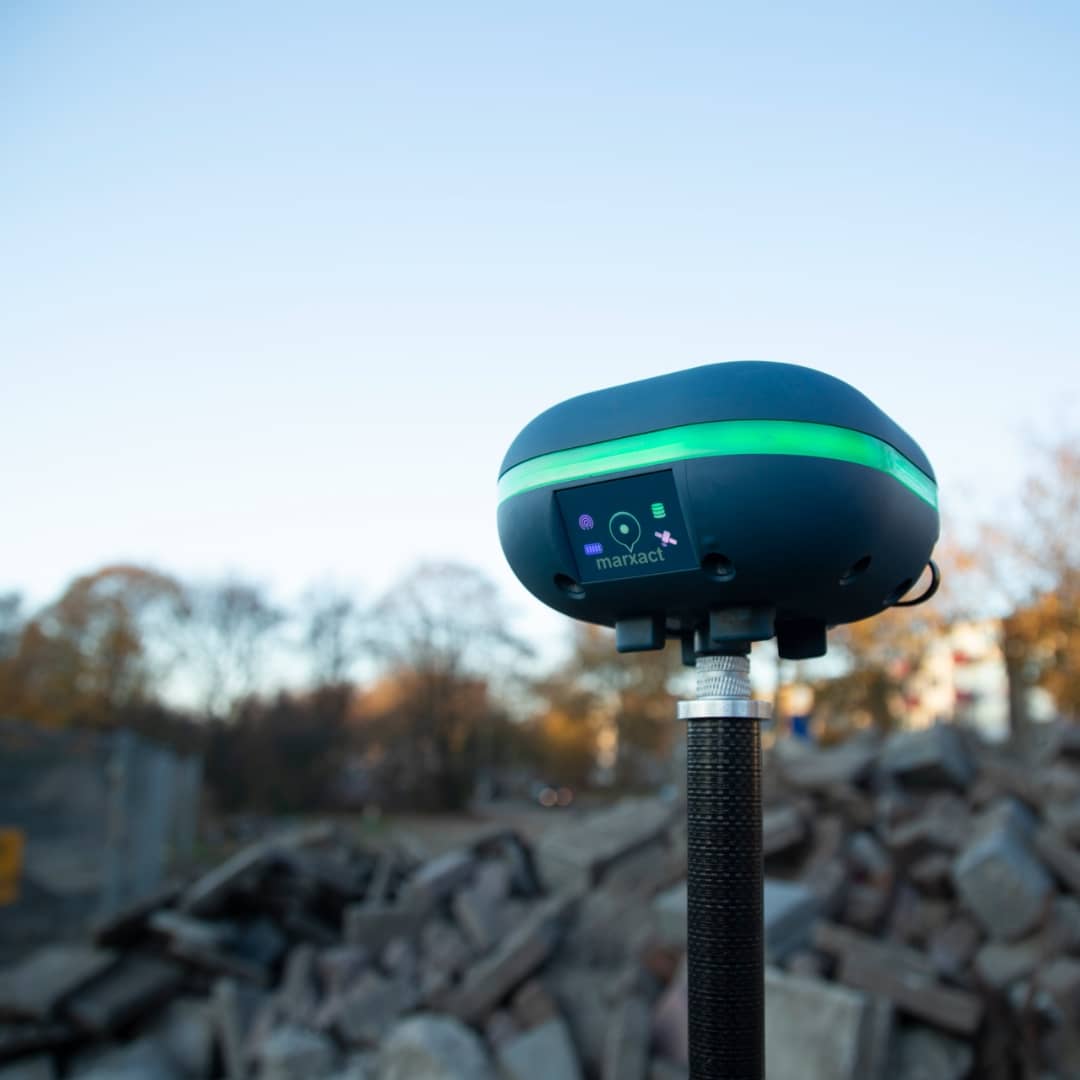

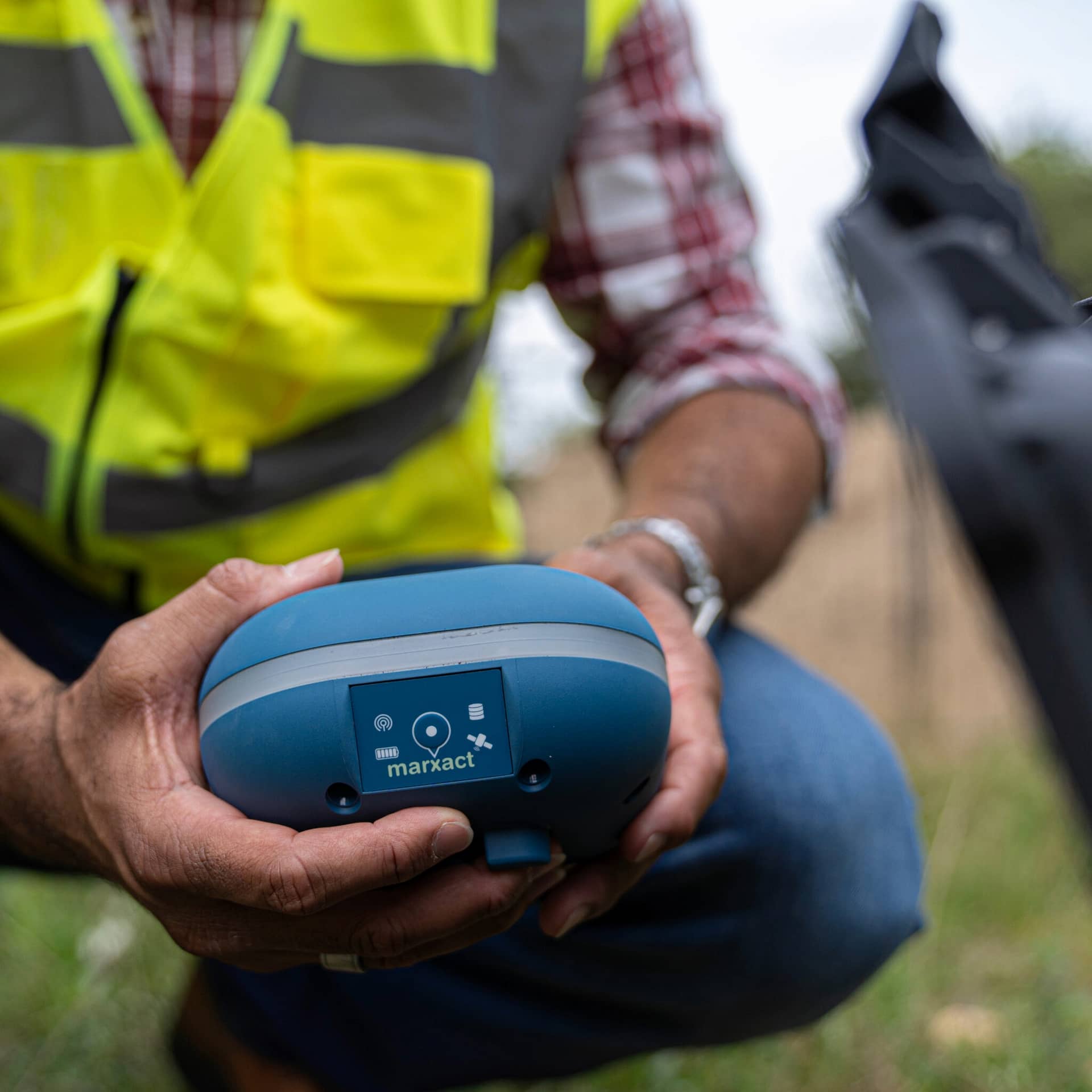

Yes. It is made for outdoor work in dust, rain and cold, runs a full day on one charge, and takes the knocks of a normal working day on site.

€ 3.295 for the receiver. Most people buy it as part of a package with the app, cloud and corrections, but you can buy it separately.

Developed in-house in Hilversum and produced in Rotterdam, the Netherlands. European build quality, one company behind the receiver, the app and the cloud.

Yes. We're happy to show you the system first with a no-obligation demo on location: at your job site, at your company, or at our office. When we deliver, we walk through it together so you can start right away. On-site training is available if you want it, but it's not a must: if you can use a smartphone, you can work with this. Think of it as extra certainty that you get everything out of it. And you can always call us.
