UNI-Collect Survey Package
Digital surveying, for anyone on site
One complete GNSS kit to survey and set out yourself, accurate to the centimetre. No surveyor needed. If you can use a smartphone, you can use this.
Survey & set out yourself
Capture points, lines and areas to the centimetre. Set out straight from your own drawing, on the day it suits you.
Deliver without waiting
Your as-builts are ready on the spot. Share with the office and client and invoice the same day.
Fits your workflow
Import your own AutoCAD drawing, work in any coordinate system and export to AutoCAD, CSV, LandXML and more.
Trusted by 1000+ companies
More than 10 million objects measured, in more than 40 countries.
How much can you save?
Find out how much you can save per year with a UNI-Collect package compared to hiring a surveying service
Want the full picture on paper? We send you the UNI-Collect brochure with the complete price list by email. No sales call unless you ask for one.
Don't wait for a surveyor, just do it yourself
Survey digitally yourself and you decide when the work is measured, delivered and invoiced. No waiting on a third party: share your as-builts with your client the same day and invoice right away.
Centimetre-accurate RTK fix
Set out straight from a drawing
Sync and share the same day

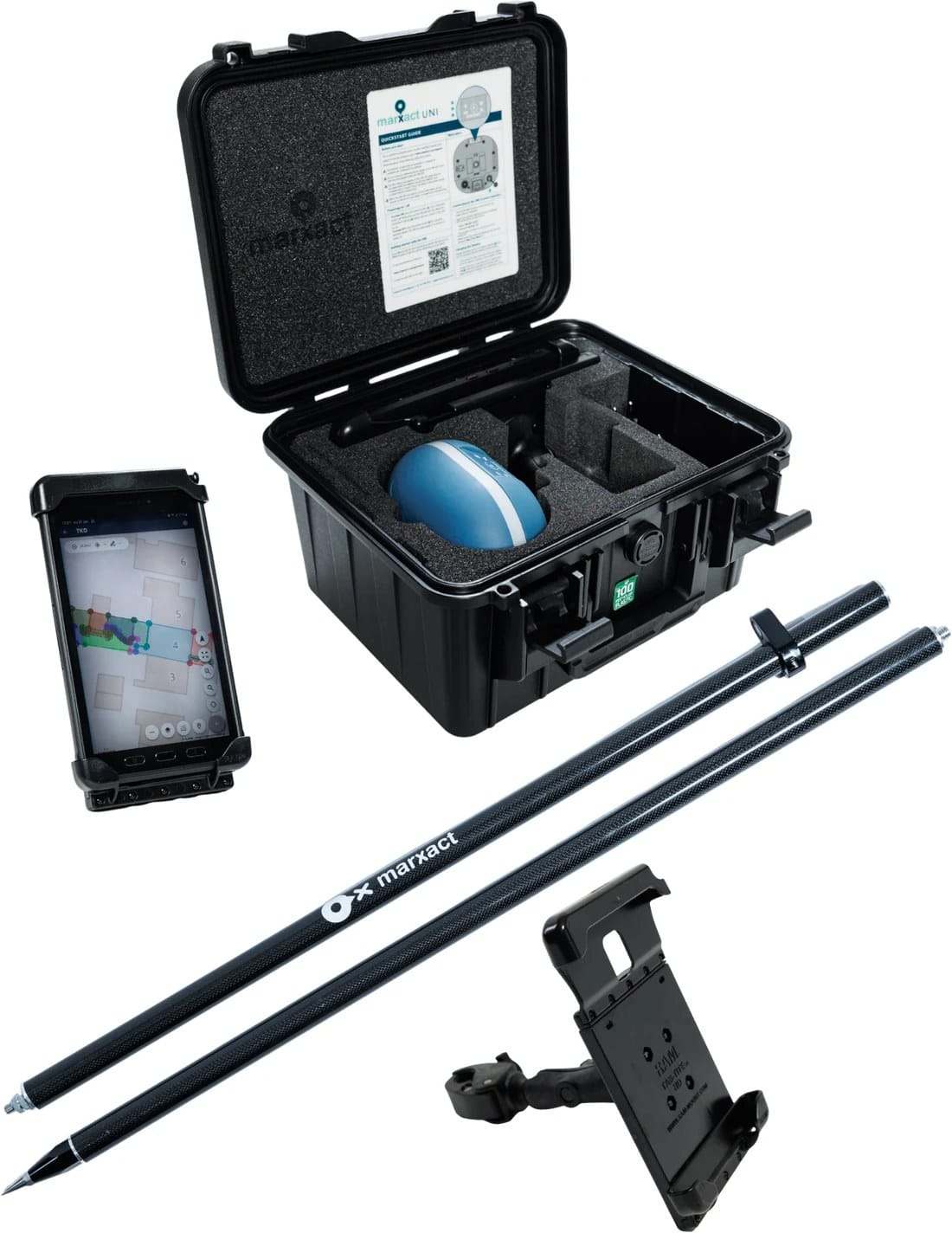

Everything you need in one case
Receiver, tablet, app, cloud and corrections. Open the case and start surveying, no specialist needed.
UNI-Collect Survey Package
| UNI-GR2 GNSS receiver | |
| UNI-Cloud Professional, 1 year* | |
| UNI-Collect app | Included |
| UNI-RTK Premium, 1 year* | |
| Samsung Galaxy Active Tab 5.0 | |
| 200 cm carbon survey pole | |
| RAM tablet mount |
Prefer to use your own tablet, or your own RTK service such as SAPOS or FLEPOS? Get the full price list to see what that takes off the price.
*UNI-Cloud Professional and UNI-RTK Premium are yearly subscriptions. Prices exclude VAT.
Add LiDAR capture with an iPad Pro.
Cheaper than hiring it in, from the first year
The right kit for every job
From roads to fibre, utilities to green space: survey and set out to the centimetre, on any site.
Infrastructure
Set out and check roads, sewers and foundations right in the field.
Fibre optics
Map cables the moment they hit the trench and invoice the same day.
Utilities
Record gas, water and power to the centimetre for the energy transition.
Green
Design and set out gardens, parks and sports fields on site.
Events
Set out stages, fences and cable runs, and reuse the same plan next year.
The same kit shows up on a lot of other jobs
- Civil engineering
- Ground works
- Sewer construction
- Road surveys
- Solar parks
- Cadastral work
- Municipalities
- Network operators
- Explosive ordnance survey
- Events and festivals
- Architecture
- Recreation parks
- Environmental consultancy
- Soil drilling and geotechnics
- Cemeteries
- Research
- Mussel farmers
Everything the kit does, grouped
Survey, set out, import, export and share. What is not there yet is marked as such.
Measure
- Points, lines and areas, with offsets on all three.
- Enter a point by hand.
- Length in 2D and 3D, per segment and the angle to the previous one.
- Area, and volume over a surface.
- Averaging over a set recording time.
- Your own pole height, and tilt compensation up to 45 degrees.
Set out
- Points, lines and areas.
- A direction arrow to the target point.
- Values to the centimetre.
- A warning when accuracy drops.
- Save what you set out, or update the existing point.
Import and export
- In: CSV, TXT, DXF, DWG, LandXML, GeoJSON, KML and ESRI Shapefile, or a ZIP with a set of files.
- A full AutoCAD drawing with automatic layer mapping, names and colours kept.
- Out: DWG, DXF, LandXML, CSV, TXT and GeoJSON, in 2D or 3D.
- Per layer, or the whole project at once.
Background and reference data
- Cadastral lines for the Netherlands, Belgium and Germany.
- Large drawings as a fast background layer, in the field and in the cabin.
- WMS layers supplied by us on Professional, your own source on Ultimate.
- A coordinate system per country, set when you create the project.
- Transformation grids on the tablet.
Photos and 3D
- Photos on a point or a shape, with EXIF, syncing on their own.
- LiDAR 3D scanning with an iPad Pro, with the UNI-GR2 for accuracy.
- Scans and photos on the map in UNI-Cloud, in a 3D viewer.
- Photos and scans land on the map on the centimetre, on the position of the UNI receiver, not on the tablet's own GPS.
Share and work together
- A public project link or a QR code, no account needed on the other side.
- Users, groups and rights.
- Real-time sync.
- An API and WebSockets for your own integration.
Coming soon: basic CAD drawing in UNI-Cloud. PDF reports are in the works.
KLIC notifications in the field and on the map
Your KLIC data sits in the same project as your measurements, in the field and in the office.
- KLIC viewer as a layer over your project in UNI-Cloud.
- Open and download KLIC documents from UNI-Cloud.
- Use imported GeoJSON as a KLIC layer.
- Use KLIC codes in UNI-Collect on the tablet.
- Also visible in UNI-Machine in the cabin.
Available from UNI-Cloud Professional.
VIDEO

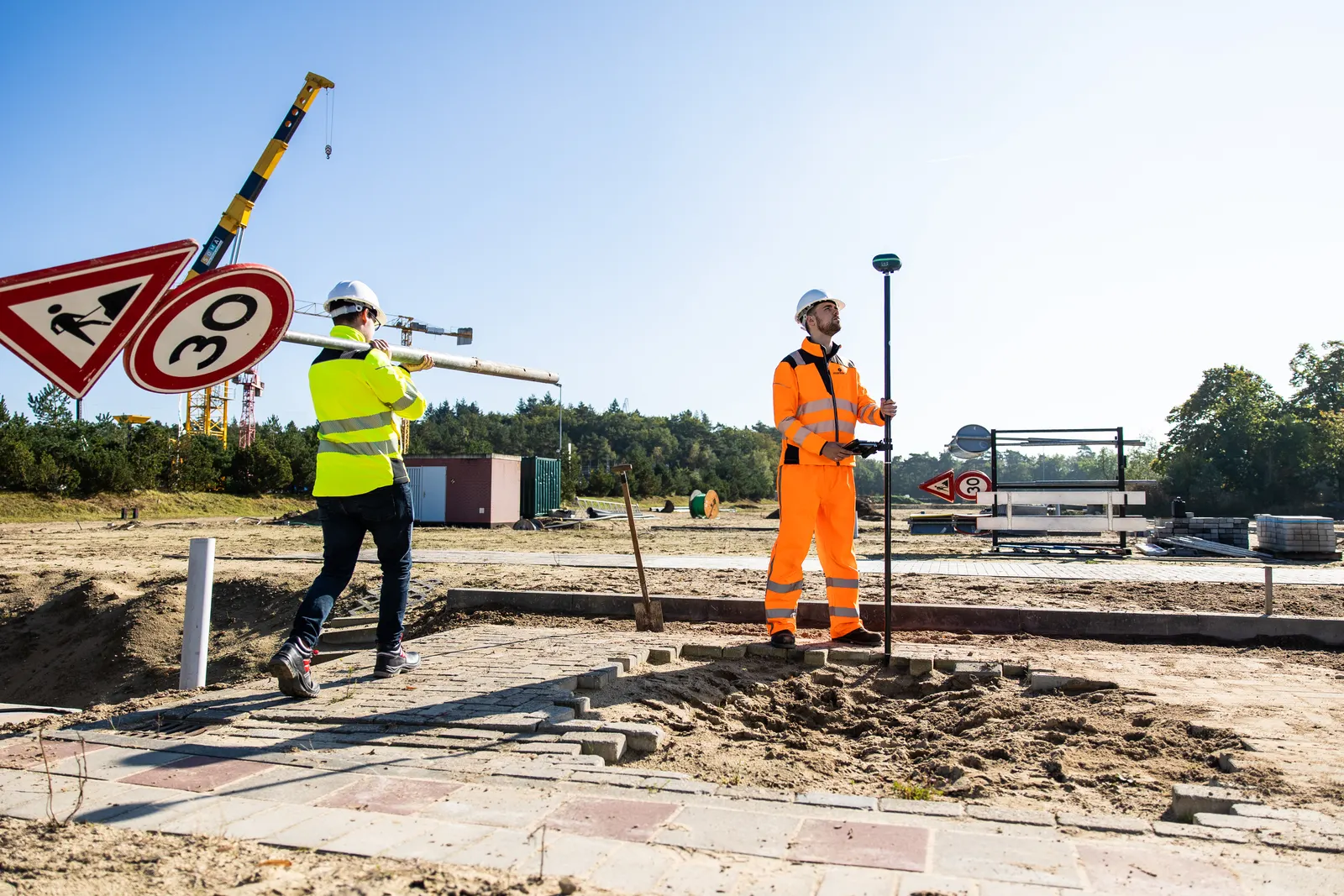

No surveyor on site, the work still measured
UNI-Collect in the field. No specialist, no waiting.
One kit today, more when the job grows
The Survey Package covers GNSS surveying and setting out. When the job grows, add capability without starting over.

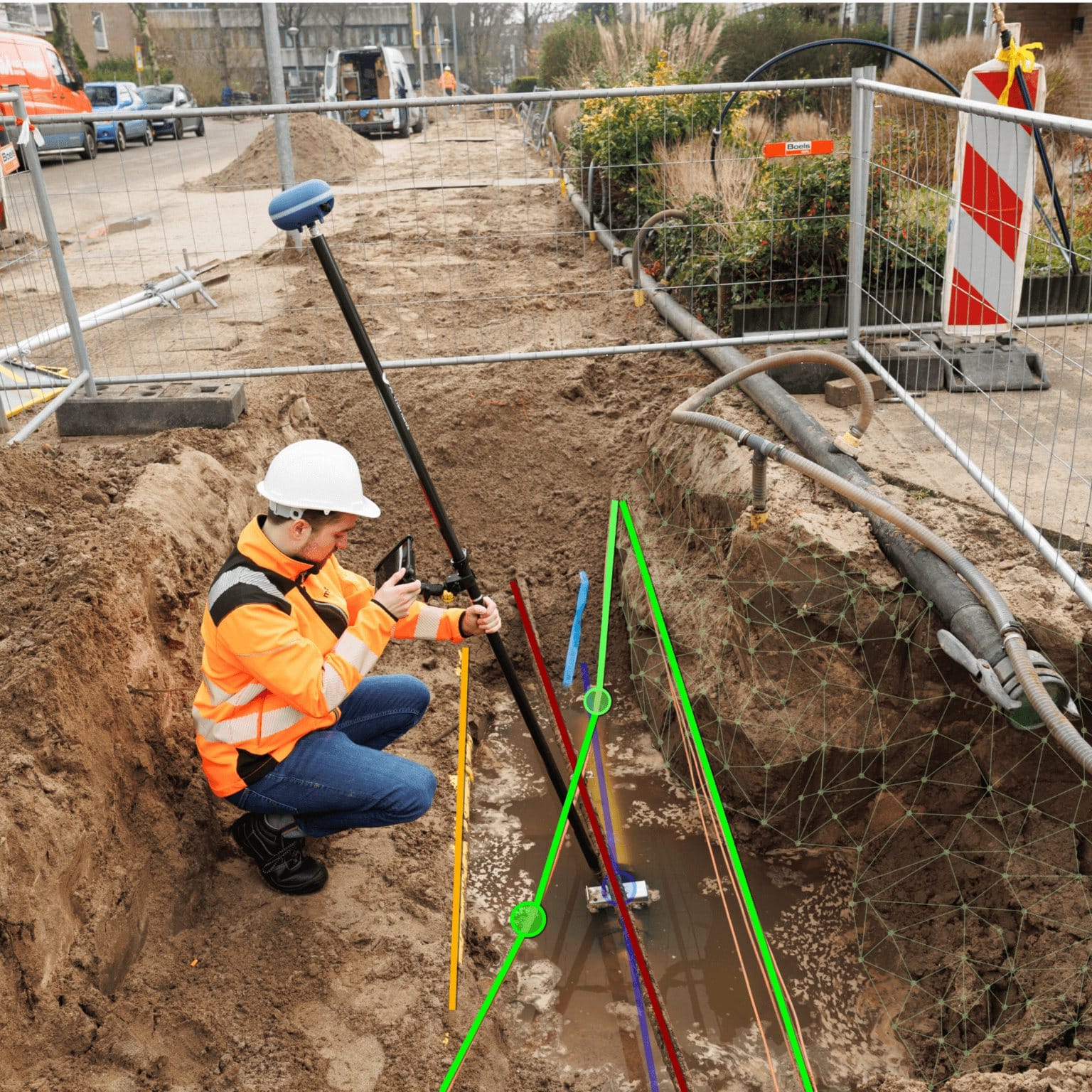

3D Package
Add LiDAR reality capture with an iPad Pro. Survey your own as-builts and capture trenches, facades and surroundings in 3D.
complete 3D package, excl. VAT
Machine Control
3D GPS machine guidance for excavators. Dig straight to design and cut rework on earthmoving jobs.
from complete excavator package, excl. VAT
Where all your field work comes together
Every point, line and project syncs to UNI-Cloud. Plan the work, share with the office and clients, and keep the field and the desk on the same page.
- Import and export DWG, DXF, LandXML, CSV, TXT and GeoJSON
- Measure length, area and volume
- Share a project with a link or a QR code
Everyone who works in the project gets their own login. Included in the UNI-Collect Survey Package for the first year.
Draw straight in the cloud and send a finished PDF report to your client.
Import and export
Bring in a full AutoCAD drawing and export to DWG, DXF, LandXML, CSV, TXT or GeoJSON.
Projects
Set up layers and attributes once, use them in the field.
Real-time sync
Field data in the office the moment you save.
Share your results
Send a project to your client with a link or a QR code.
Layers and attributes
Set them up once in the office. In the field your crew picks them from a list, so every point lands in the right layer.
Drag and drop your files
Drop a drawing or a point file, or full AutoCAD drawing straight into the project. It is on the tablet at the next sync. A drawing arrives as layers with points, lines and areas.
Share your results
One click gives your client a link or a QR code to the project. No account needed on their side. Export to DWG, DXF, LandXML, CSV, TXT or GeoJSON, in 2D or 3D, per layer or the whole project.
Support that keeps you working
Our own support team in Hilversum answers the phone during office hours, on a local number in the Netherlands, Germany and the UK. Those three numbers are an extra, not a limit: we help customers worldwide, by phone, email and chat, in several languages. What customers tell us most is that we keep them moving. Someone picks up a kit from a colleague, has never used it before and calls to ask how to set it up: that is usually sorted on the phone in a few minutes. If talking it through is not enough, we can take over the receiver remotely and look at it with you. For the harder cases we stay on it until you can get on with your work.
- Email and chat support on every plan.
- Phone support and remote assistance from Professional.
- A replacement receiver if yours fails, on Ultimate.
What our customers say
“Measuring tapes are a thing of the past. With the UNI-GR2 we are now able to equip every worker, foreman or technician in the field with an easy to use receiver to survey.”
Heijmans
The Netherlands
“By using the UNI-GR2 and combining it with our GIS tools, we have been able to work more efficient. On fibre optics projects, we are now able to skip about 50 process steps!”
BAM Infra Telecom
The Netherlands
“The stake-out function saves us a lot of time, with quick loading of points and lines. It’s easy to use, which is a big plus. We use the UNI-GR2 for baseline measurements, construction work, and sewer projects, and we’re very satisfied with it.”
T. Van de Haterd
The Netherlands
Frequently asked questions
Measure and record anything on site to the centimetre: cables and pipes in the trench, manholes, kerbs and road edges, trees and green. Set out points and lines straight from a drawing, so you know exactly where things go. Check heights, depths and slopes, work out lengths, areas and volumes, and hand the office or your client a finished file the same day. No surveyor needed.
No. It is built for people without a surveying background. If you can use a smartphone you can measure and set out with it, and our support walks you through the first setup on the phone.
In the open field the UNI-GR2 reaches 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical with an RTK fix, and 3 mm + 1 ppm in static mode. Close to buildings, trees or other obstructions, where the sky view is limited, expect closer to 2 cm in real conditions.
You choose the coordinate reference system per project, with the transformation grids stored on the tablet. RD and NAP in the Netherlands, OSGB36 in the UK, Lambert in Belgium, the national grid and height system in Germany, and any other system you need.
The platform is set up for the standards clients ask for, including NLCS and NLCS++ for cables and pipes, CROW 500 and the DSP exchange in the Netherlands, and open protocols like NMEA-0183 for other receivers. It supports the way this work is delivered, from trial trenches (proefsleuven) to digital construction supervision (digitale Baubegleitung). And if there is a standard you need that we do not support yet, we are always open to it and think along with you.
One year of UNI-RTK Premium is included, our correction network with more than 2,000 base stations in over 30 countries. You can also use your own NTRIP service such as SAPOS in Germany or FLEPOS in Flanders, which are free. Bring your own network and you save the € 1.000 a year that UNI-RTK Premium costs, and we adjust the package price.
Yes. Your projects and layers sit on the tablet, so you keep measuring offline and everything syncs to UNI-Cloud once you have coverage again. A live RTK fix does need a correction signal over 4G.
Yes. From UNI-Cloud Professional the KLIC cable and pipe map loads as a layer over your project, in the field and in the office. That plan is part of the package.
Import CSV, TXT, DXF, DWG, LandXML, GeoJSON, KML and ESRI Shapefile. Export DWG, DXF, LandXML, CSV, TXT and GeoJSON, and from Q3 2026 also PDF reports. You can also share a project and its map through a view link or QR code, so a client opens the result without any software.
One case with the UNI-GR2 receiver, a Samsung Galaxy Active Tab 5.0 rugged tablet, a 200 cm carbon pole with RAM mount, the UNI-Collect app, one year of UNI-Cloud Professional and one year of UNI-RTK Premium. It is € 5.645 the first year, then € 1.750 a year for the two subscriptions.
The recurring € 1.750 covers UNI-Cloud Professional and UNI-RTK Premium. The corrections are what give you the centimetre fix, so for RTK work you need a correction service. Run your own NTRIP network instead and you save the € 1.000 for UNI-RTK Premium.
Yes. Bring your own tablet and we leave it out of the package and adjust the price. The UNI-Collect app is included either way.
For recurring measuring and setting-out work, yes, from the first year. A surveying service costs around € 500 a day. With the Survey Package you sit at about € 9,92 per working day over five years, or € 0,03 per metre surveyed, and you measure whenever you need to.
Yes. The UNI-GR2 is made for outdoor work in dust, rain and cold, and keeps working through a full day on one charge. It is built to take the knocks of a normal working day on site.
In the Netherlands. We develop the hardware and the software in-house in Hilversum, and the UNI-GR2 is produced in Rotterdam. You get European build quality and one company behind the whole chain.
Our own team in Hilversum answers the phone Monday to Friday, 09:00 to 17:00 CET, on local numbers in the Netherlands, Germany and the UK. From the Professional plan up they take over your device remotely and fix most things on the spot.
Yes. We’re happy to show you the system first with a no-obligation demo on location: at your job site, at your company, or at our office. When we deliver, we walk through it together so you can start right away. On-site training is available if you want it, but it’s not a must: if you can use a smartphone, you can work with this. Think of it as extra certainty that you get everything out of it. And you can always call us.
Ready to survey it yourself?
Book a demo and we will show you the kit on your own site, with your own drawing.
Or call us: +31 (0)70 700 7917
