Set out your site yourself, to the centimetre
Foundations, pile positions, kerbs, grid lines and utilities, set out straight from your drawing by your own crew. No waiting for a surveyor to fit you into their week.
Set out from your drawing
Load your DWG, DXF or LandXML and walk to each point with a direction arrow and centimetre values.
Check as you build
Measure what was built against the design and see the difference on the spot.
Hand over the as-built
The office and your client get the measured result the same day.
Trusted by 1000+ companies
More than 10 million objects measured, in more than 40 countries.
Set out on your schedule, not the surveyor's
A surveyor costs around € 500 a day, and you wait until they have time. With the UNI-Collect Survey Package your foreman sets out when the job needs it, and re-checks a point in minutes instead of rebooking. Over five years the package works out at about € 9,92 per working day.
Direction arrow to every set-out point
A warning when accuracy drops

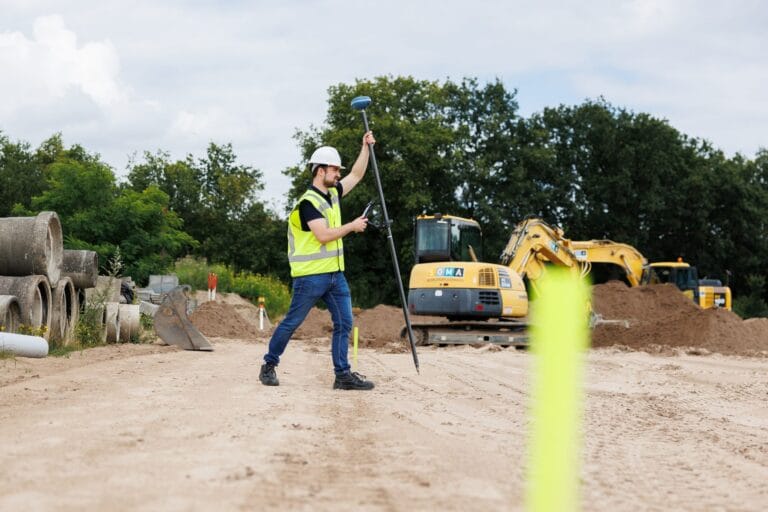

Tilt compensation up to 45 degrees
Set-out tasks the kit handles
From the first peg to the final check, on new builds, extensions and civil works.
Buildings and foundations
- Building corners, grid lines and foundation outlines.
- Pile positions, numbered straight from the pile plan.
- Heights against NAP or your own site datum.
Roads and paving
- Kerb lines, road edges and gullies.
- Parking bays and markings.
- Levels for sub-base and finished surface.
Utilities
- Cable and pipe routes, manholes and connections.
- Check the depth of cover in the open trench.
- KLIC cables and pipes as a layer on the tablet.
Checks and as-built
- Measure what was built and compare it to the design.
- Lengths, areas and volumes on the spot.
- Export to DWG, DXF, LandXML or CSV for the office.
Everything for set-out in one case
The UNI-Collect Survey Package: receiver, rugged tablet, pole, app, cloud and corrections. No specialist needed to start.
UNI-Collect Survey Package
| UNI-GR2 GNSS receiver | |
| UNI-Cloud Professional, 1 year* | |
| UNI-Collect app | Included |
| UNI-RTK Premium, 1 year* | |
| Samsung Galaxy Active Tab 5.0 | |
| 200 cm carbon survey pole | |
| RAM tablet mount |
Prefer to use your own tablet, or your own RTK service such as SAPOS or FLEPOS? Get the full price list to see what that takes off the price.
*UNI-Cloud Professional and UNI-RTK Premium are yearly subscriptions. Prices exclude VAT.
Add LiDAR capture with an iPad Pro.
KLIC notifications in the field and on the map
Your KLIC data sits in the same project as your measurements, in the field and in the office.
- Request a KLIC notification directly in UNI-Cloud.
- KLIC viewer as a layer over your project in UNI-Cloud.
- Open and download KLIC documents from UNI-Cloud.
- Use imported GeoJSON as a KLIC layer.
- Use KLIC codes in UNI-Collect on the tablet.
- Also visible in UNI-Machine in the cabin.
Available from UNI-Cloud Professional.
When set-out turns into machine work
Add 3D scanning for your own as-builts, or put the design in the cabin with UNI-Machine on your excavators and dozers.
3D Package
Add LiDAR reality capture with an iPad Pro. Survey your own as-builts and capture trenches, facades and surroundings in 3D.
€ 6.990complete 3D package, excl. VAT
Machine Control
3D GPS machine guidance for excavators and dozers. Dig and grade straight to the design and cut rework on earthmoving jobs.
from € 17.995most common complete configuration, incl. first-year subscriptions, excl. VAT
Support that keeps you working
Our own support team in Hilversum answers the phone during office hours, on a local number in the Netherlands, Germany and the UK. Those three numbers are an extra, not a limit: we help customers worldwide, by phone, email and chat, in several languages. What customers tell us most is that we keep them moving. Someone picks up a kit from a colleague, has never used it before and calls to ask how to set it up: that is usually sorted on the phone in a few minutes. If talking it through is not enough, we can take over the receiver remotely and look at it with you. For the harder cases we stay on it until you can get on with your work.
- Email and chat support on every plan.
- Phone support and remote assistance from Professional.
- A replacement receiver if yours fails, on Ultimate.
What our customers say
“Measuring tapes are a thing of the past. With the UNI-GR2 we are now able to equip every worker, foreman or technician in the field with an easy to use receiver to survey.”
Heijmans
The Netherlands
“By using the UNI-GR2 and combining it with our GIS tools, we have been able to work more efficient. On fibre optics projects, we are now able to skip about 50 process steps!”
BAM Infra Telecom
The Netherlands
“The stake-out function saves us a lot of time, with quick loading of points and lines. It’s easy to use, which is a big plus. We use the UNI-GR2 for baseline measurements, construction work, and sewer projects, and we’re very satisfied with it.”
T. Van de Haterd
The Netherlands
Frequently asked questions
Yes, for most day-to-day set-out on a construction or civil site: building corners, grid lines, pile positions, kerbs, road edges and utility routes. Load your drawing in the UNI-Collect app, walk to each point with the direction arrow and mark it. Work that legally needs a certified surveyor, such as cadastral boundaries, stays with a surveyor.
Centimetre-accurate with an RTK fix from the UNI-GR2 and UNI-RTK Premium corrections. In the open you work to the centimetre; close to buildings, trees or other obstructions, where the sky view is limited, expect around 2 cm. Tilt compensation up to 45 degrees means the pole does not have to be held level.
No. The kit is built for people on site without a surveying background. If you can use a smartphone, you can measure and set out with it. We walk you through the first setup, and our own support team in Hilversum is on the phone Monday to Friday, 09:00 to 17:00 CET.
For recurring set-out, yes, from the first year. A surveying service costs around € 500 a day. The Survey Package works out at about € 9,92 per working day over five years, and you set out whenever you need to.
The UNI-Collect Survey Package is € 5.645 the first year, complete with the UNI-GR2 receiver, a rugged tablet, a pole, the UNI-Collect app, one year of UNI-Cloud Professional and one year of UNI-RTK Premium. After that it is € 1.750 a year for the two subscriptions. Prices exclude VAT.
You choose the coordinate system per project: RD and NAP in the Netherlands, OSGB36 in the UK, Lambert in Belgium, the national grid and height system in Germany, or any other. Import CSV, TXT, DXF, DWG, LandXML, GeoJSON, KML and ESRI Shapefile; export DWG, DXF, LandXML, CSV, TXT and GeoJSON.
Yes. You request a KLIC notification directly in UNI-Cloud, and the cables and pipes load as a layer over your project, in the field on the tablet, in the office and in the UNI-Machine cabin. Available from UNI-Cloud Professional, which is part of the Survey Package.
Ready to set out your own site?
Book a demo and we set out a few points with you on your own site, from your own drawing.
