Industries · Railway
Civil works along the track, measured to the centimetre
Cable routes, foundations for masts and signals, drainage and access roads along the railway, set out and recorded by your own crew to the centimetre.
Set out along the track
Foundations, cable routes and drainage straight from the design.
Record cables and ducts
Cable troughs, ducts and crossings measured as built.
Deliver to the client
As-builts in DWG, LandXML, CSV or NLCS++.
Trusted by 1000+ companies
More than 10 million objects measured, in more than 40 countries.
The civil work around the rails
Railway projects carry a lot of civil work next to the track: cable routes, foundations, drainage, access roads. With the UNI-Collect Survey Package your crew sets out and records that work when it is ready, with photos on every point. Track geometry and rail alignment checks need specialist rail survey equipment; we cover the civil work around them.
Foundations and cable routes
Drainage and access roads
As-builts with photos
What rail civil crews do with it
Centimetre-accurate survey and set-out for the civil scope of rail projects.

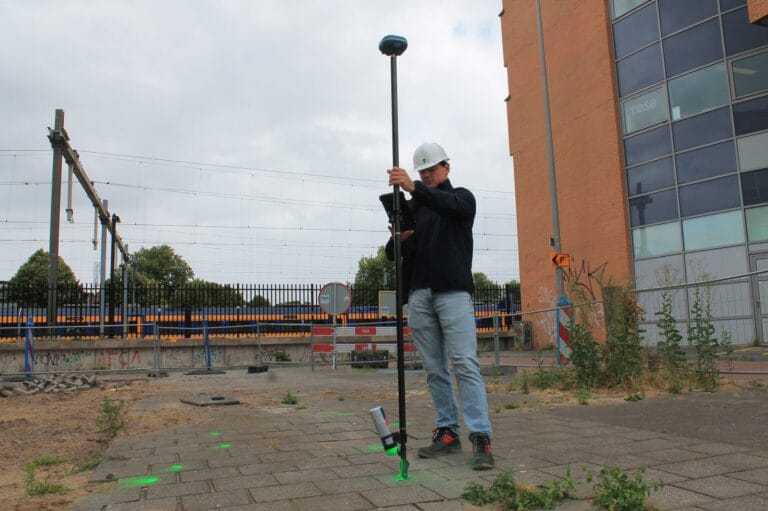

Set-out
- Foundations for masts, signals and cabinets.
- Cable trough and duct routes.
- Drainage, culverts and access roads.
As-built
- Cables, ducts and crossings to the centimetre.
- Heights against NAP or your project datum.
- Photos on each point, syncing on their own.
Delivery
- Export to DWG, DXF, LandXML, CSV or GeoJSON.
- NLCS++ for cables and pipes, with UNI-Cloud Ultimate.
- Real-time sync to the office.
The kit for rail civil crews
The UNI-Collect Survey Package for set-out and as-builts on the civil scope of the project.
UNI-Collect Survey Package
| UNI-GR2 GNSS receiver | |
| UNI-Cloud Professional, 1 year* | |
| UNI-Collect app | Included |
| UNI-RTK Premium, 1 year* | |
| Samsung Galaxy Active Tab 5.0 | |
| 200 cm carbon survey pole | |
| RAM tablet mount |
Prefer to use your own tablet, or your own RTK service such as SAPOS or FLEPOS? Get the full price list to see what that takes off the price.
*UNI-Cloud Professional and UNI-RTK Premium are yearly subscriptions. Prices exclude VAT.
Add LiDAR capture with an iPad Pro.
KLIC notifications in the field and on the map
Your KLIC data sits in the same project as your measurements, in the field and in the office.
- Request a KLIC notification directly in UNI-Cloud.
- KLIC viewer as a layer over your project in UNI-Cloud.
- Open and download KLIC documents from UNI-Cloud.
- Use imported GeoJSON as a KLIC layer.
- Use KLIC codes in UNI-Collect on the tablet.
- Also visible in UNI-Machine in the cabin.
Available from UNI-Cloud Professional.
More when the job grows
Capture structures and cable trenches in 3D with the 3D Package, or dig to design with UNI-Machine on your excavators.
3D Package
Add LiDAR reality capture with an iPad Pro. Survey your own as-builts and capture trenches, facades and surroundings in 3D.
€ 6.990complete 3D package, excl. VAT

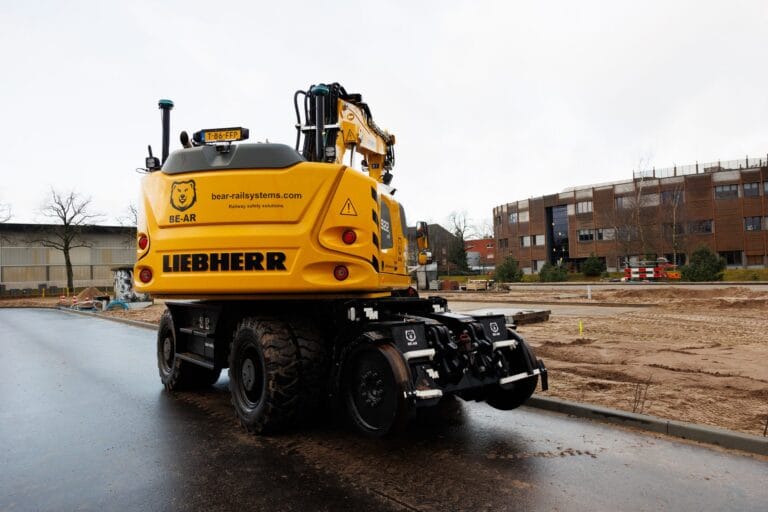

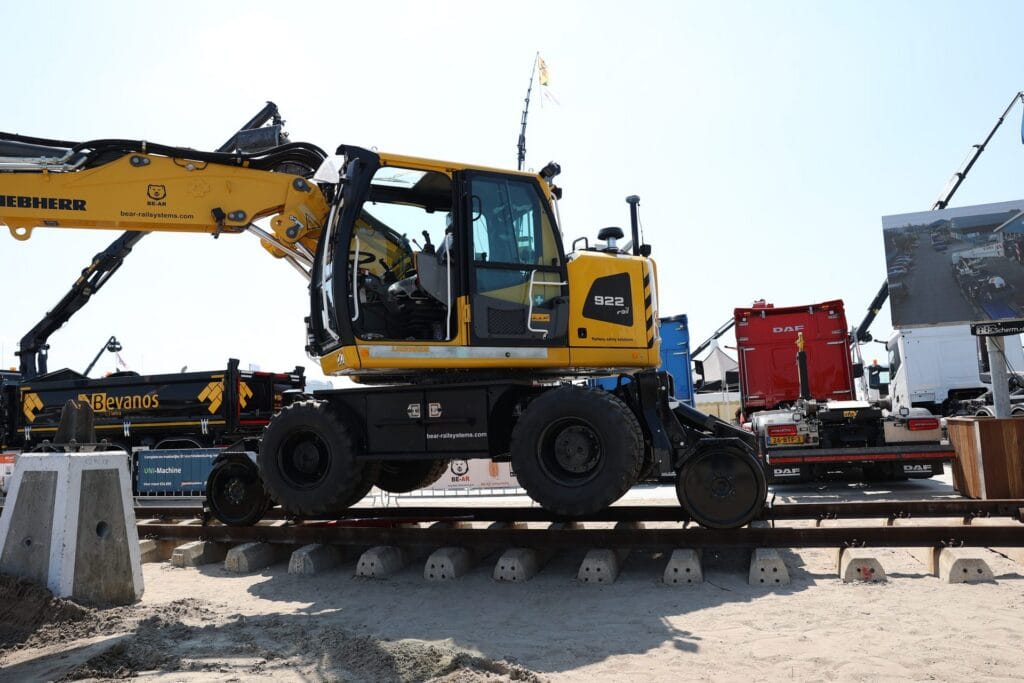

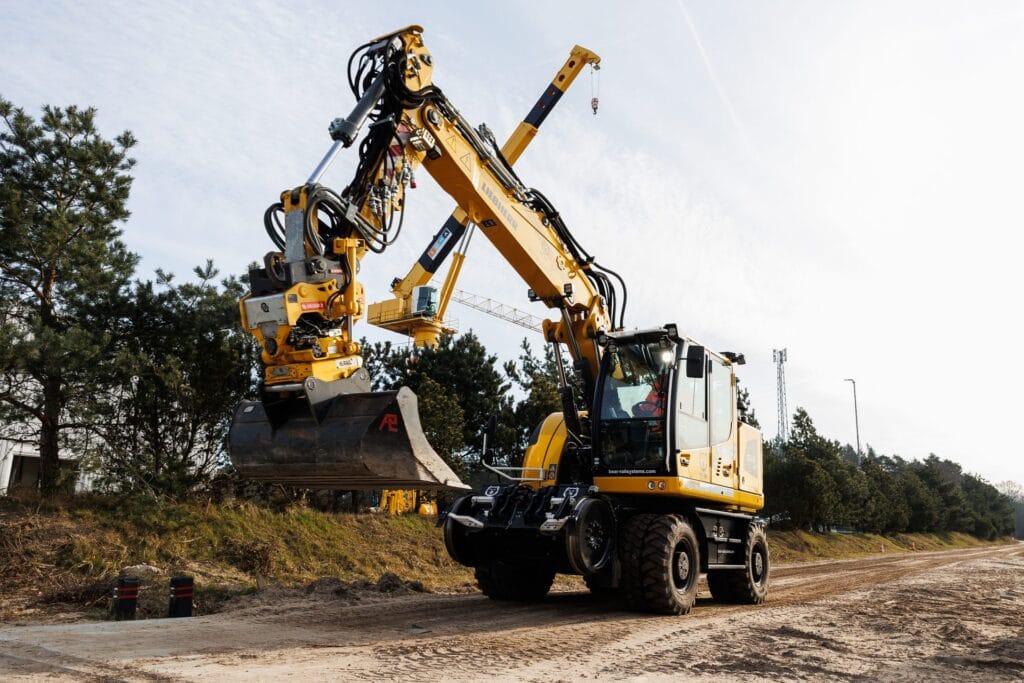

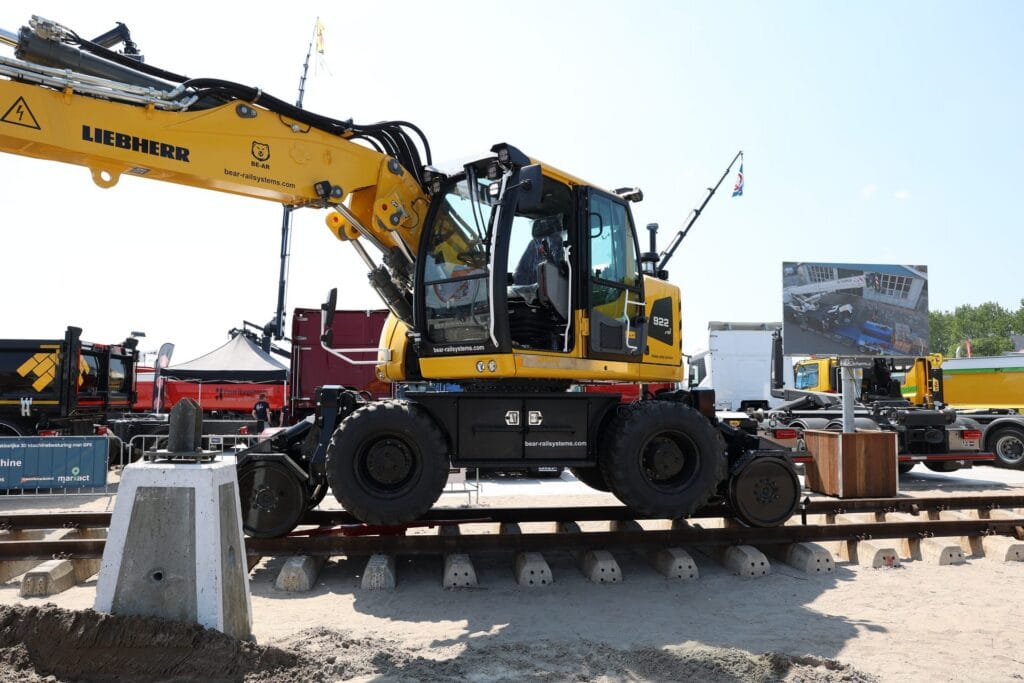

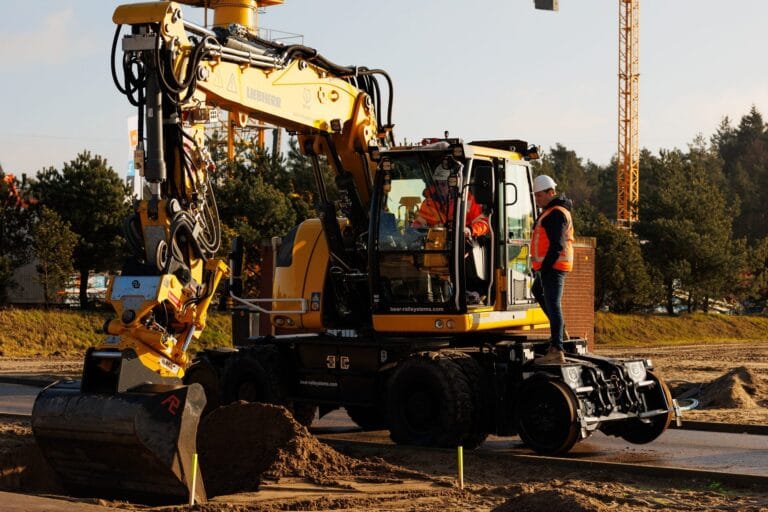

Machine Control
3D GPS machine guidance for excavators and dozers. Dig and grade straight to the design and cut rework on earthmoving jobs.
from € 17.995most common complete configuration, incl. first-year subscriptions, excl. VAT
Support that keeps you working
Our own support team in Hilversum answers the phone during office hours, on a local number in the Netherlands, Germany and the UK. Those three numbers are an extra, not a limit: we help customers worldwide, by phone, email and chat, in several languages. What customers tell us most is that we keep them moving. Someone picks up a kit from a colleague, has never used it before and calls to ask how to set it up: that is usually sorted on the phone in a few minutes. If talking it through is not enough, we can take over the receiver remotely and look at it with you. For the harder cases we stay on it until you can get on with your work.
- Email and chat support on every plan.
- Phone support and remote assistance from Professional.
- A replacement receiver if yours fails, on Ultimate.
What our customers say
“Measuring tapes are a thing of the past. With the UNI-GR2 we are now able to equip every worker, foreman or technician in the field with an easy to use receiver to survey.”
Heijmans
The Netherlands
“By using the UNI-GR2 and combining it with our GIS tools, we have been able to work more efficient. On fibre optics projects, we are now able to skip about 50 process steps!”
BAM Infra Telecom
The Netherlands
“The stake-out function saves us a lot of time, with quick loading of points and lines. It’s easy to use, which is a big plus. We use the UNI-GR2 for baseline measurements, construction work, and sewer projects, and we’re very satisfied with it.”
T. Van de Haterd
The Netherlands
Frequently asked questions
No. Track geometry and rail alignment checks need specialist rail survey equipment. Our kit is for the civil work around the track: foundations, cable routes, drainage and access roads, to the centimetre.
Foundations for masts, signals and cabinets, cable trough and duct routes, crossings, drainage, culverts and access roads. Every point is recorded with its height and photos, and syncs to UNI-Cloud.
Centimetre-accurate with an RTK fix from the UNI-GR2 and UNI-RTK Premium corrections. In the open you work to the centimetre; close to buildings, trees or other obstructions, where the sky view is limited, expect around 2 cm. Tilt compensation up to 45 degrees means the pole does not have to be held level.
The UNI-Collect Survey Package is € 5.645 the first year, complete with the UNI-GR2 receiver, a rugged tablet, a pole, the UNI-Collect app, one year of UNI-Cloud Professional and one year of UNI-RTK Premium. After that it is € 1.750 a year for the two subscriptions. Prices exclude VAT.
You choose the coordinate system per project: RD and NAP in the Netherlands, OSGB36 in the UK, Lambert in Belgium, the national grid and height system in Germany, or any other. Import CSV, TXT, DXF, DWG, LandXML, GeoJSON, KML and ESRI Shapefile; export DWG, DXF, LandXML, CSV, TXT and GeoJSON.
Yes. You request a KLIC notification directly in UNI-Cloud, and the cables and pipes load as a layer over your project, in the field on the tablet, in the office and in the UNI-Machine cabin. Available from UNI-Cloud Professional, which is part of the Survey Package.
Want to see it on your rail project?
Book a demo and we set out and record a few objects with you, from your own design.
Or call us: +31 (0)70 700 7917
